PELLET HYDRO BOILER 23KW THERMIKI

PELLET HYDRO BOILER 23KW THERMIKI

PELLET HYDRO BOILER can warm your space through the radiator circuit. It has vertical fumes (tuba) that effectively transfer heat to the water. It has a built-in electronic program TIEMME elettronica, which offers fully automated ignition and management of all combustion functions according to the real needs for heat generation by automatically adjusting all operating parameters for perfect combustion & efficiency outcome. It also has a circulator and an expansion tank.

Additional information

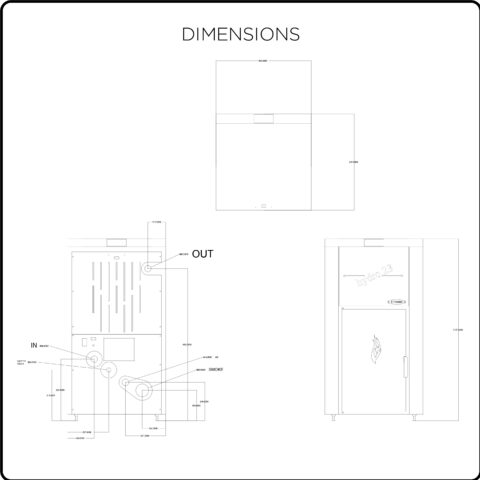

Dimensions LxDxH (cm): 61.5 x 61.5 x 114

Chimney (mm): 80

Thermal Power (kw): 23

Efficiency (%): 89.79

Power Supply (W): 120~370

Tank Capacity (kg): 35

Wheight (kg): 220

Consumption (kg/h): 2.5 – 5.0

Body Carbon steel: 3mm

Heater Χάλυβας: 4mm

Door Glass rope: 12mm

Glass Clear Ceramic: 4mm

Water supplies: 1΄& 1/2΄Η ΠΛΗΡΩΣΗ

Insulation: Rockwool 25mm all around and ceramic wool 25mm on the top
