Wood Boiler ATS HYDRO BOILER 31KW THERMIKI

Boiler hydraulic is a wood-fired boiler and can heat our space through the radiator circuit. Insulation of wool 25mm perimeter and tile wool 25mm above. It has the ability to convert a pellet boiler by installing a burner. Connected to a non-supplied hydrostatic valve. It has a container (drawer) at the bottom where the ash is collected, which is easier to be removed.

Additional information

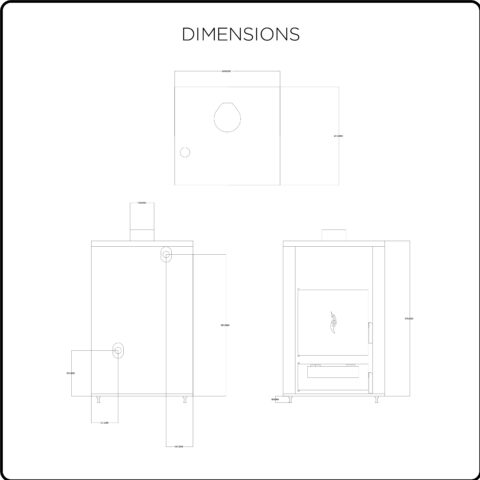

Dimensions LxDxH (cm)         66 x 61.5 x 98

Chimney (mm)             150

Thermal Power (kw)   30.56

Efficiency (%  83.57

Tank Capacity (kg)      45

Wheight (kg)    150

Body    Carbon steel 2.5mm

Heater 4mm & Vermiculite

Water supplies             1’

Energy Class  A

Combustion Chamber Dimensions LxDxH (cm)     47 x 48 x 5
